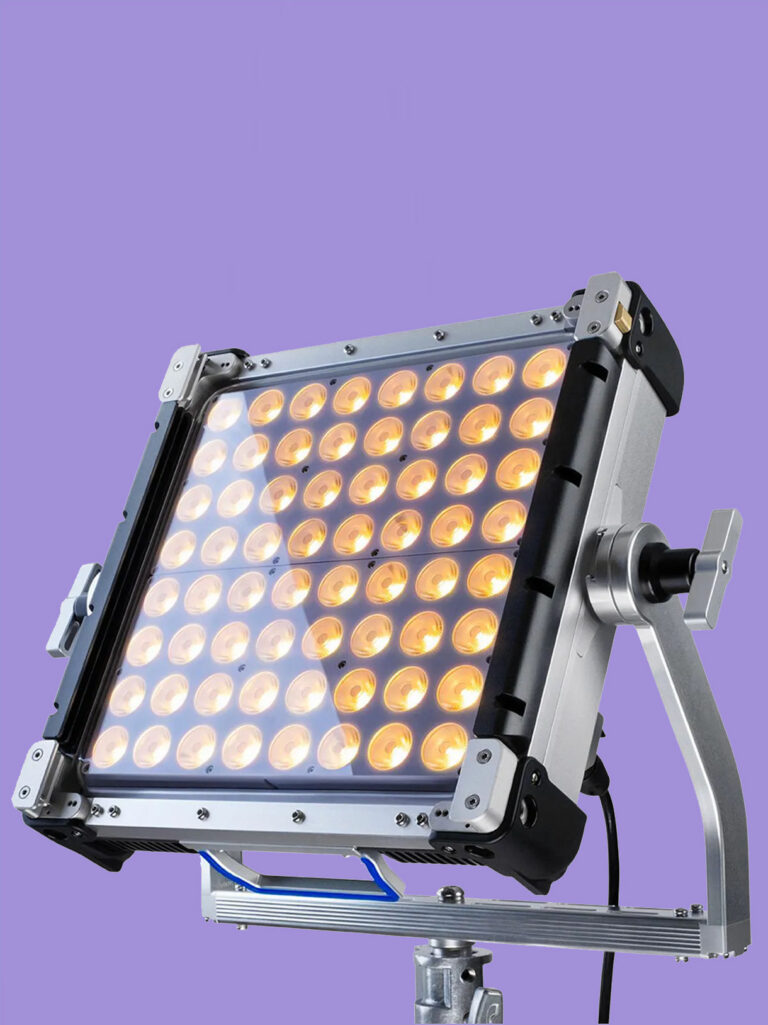

Creamsource Vortex4 RGB LED Light Panel Kit

The Creamsource Vortex4 is a rugged 325W 1×1 RRGBBW LED fixture designed to work equally well as a punchy hard source or a powerful soft light when paired with diffusion. Its native 20° beam is remarkably concentrated for a panel, producing 7,300 lux at 3 meters / 5600K, roughly comparable in output to a 575W HMI Fresnel.

With a massive 2200K–15,000K CCT range, the Vortex4 goes far beyond standard tungsten-to-daylight adjustment. It offers full RGB color, +/- green correction, Hue/Saturation, XY control, digital gels and built-in effects, all while maintaining excellent color reproduction with typical CRI and TLCI ratings of 95.

The narrow native beam makes the Vortex4 especially versatile—you can use it naked for a hard, directional source, bounce it for maximum output, or add a diffuser or Creamsource Dome to turn it into a softer wraparound source. Four independently controllable pixel zones also open up effects and more advanced lighting control.

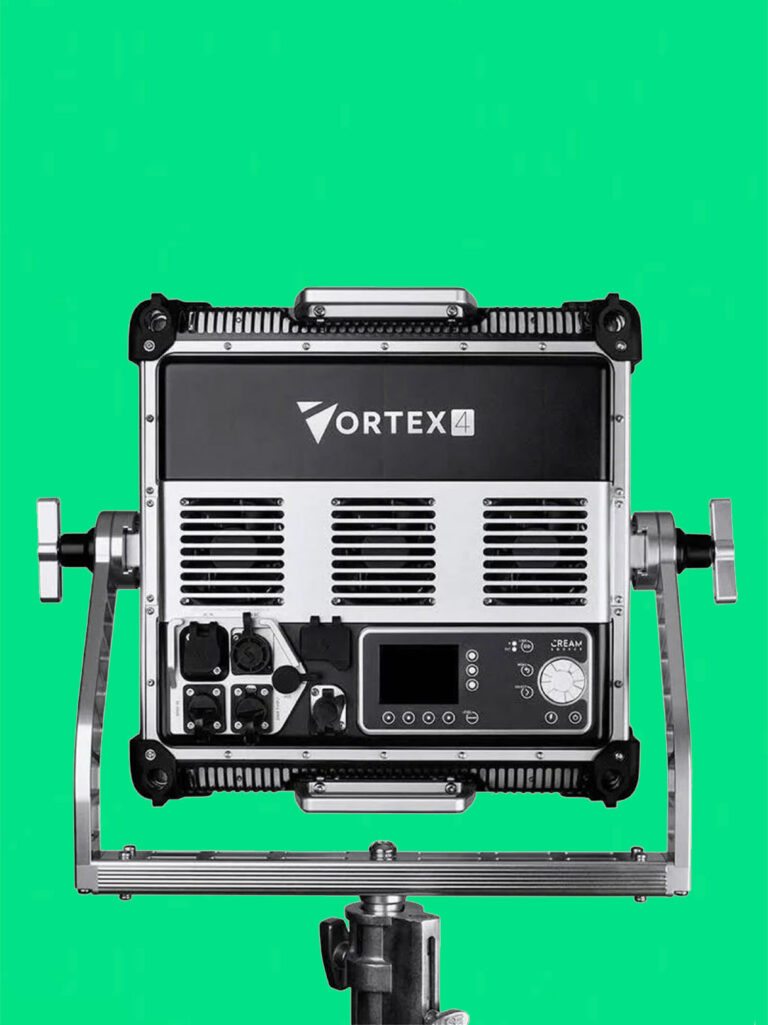

Built for real production environments, the fixture is IP65 weather resistant, has its power supply built directly into the head, and can operate at full output from either AC or 48V DC power. Integrated LumenRadio, DMX, Ethernet and Bluetooth provide plenty of options for remote and console control.

For high-speed work, the Vortex4 can operate flicker-free beyond 5,000 fps and includes camera synchronization capabilities for more demanding high-speed and effects applications.

Click Here for technical data.
